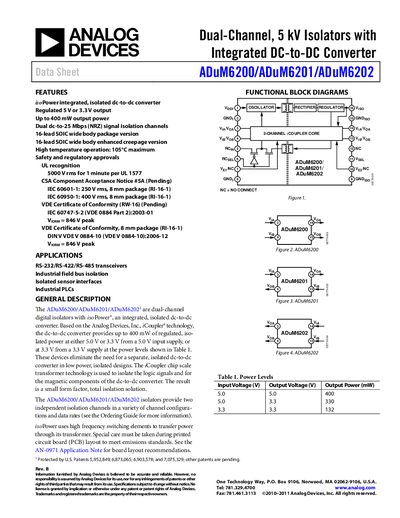

ADuM6200/ADuM6201/ADuM6202 is a dual-channel, 5kV isolator with an integrated DC-to-DC converter. It features a regulated 5V or 3.3V output and up to 400mW output power. It also has dual DC-to-25 Mbps (NRZ) signal isolation channels.
The ADuM6200/ADuM6201/ADuM6202 family provides dual‑channel digital isolation with an integrated isoPower DC‑DC converter that can supply a regulated 5 V or 3.3 V output at up to 400 mW. The devices use iCoupler transformer technology to achieve up to 5 kV (5000 Vrms) isolation and support data rates up to 25 Mbps.
Typical applications include RS‑232/RS‑422/RS‑485 transceivers, industrial field‑bus isolation, isolated sensor interfaces and PLCs. The parts meet UL 1577, CSA, IEC 60601‑1, IEC 60950‑1 and VDE certifications, and include safety features such as thermal shutdown at 150 °C.
| Isolation Voltage (UL 1577) | 5000 Vrms (1‑minute) |
|---|---|
| Maximum Output Power | 400 mW |
| Regulated Output Voltages | 5 V or 3.3 V |
| Supply Current (5 V primary) | 80 mA |
| Switching Frequency | 180 MHz |
| Thermal Shutdown Threshold | 150 °C |
Each device is rated for 5000 Vrms isolation voltage for a 1‑minute test according to UL 1577.
The isoPower converter can supply a regulated 5 V or 3.3 V output.
The device can deliver up to 400 mW of output power.
