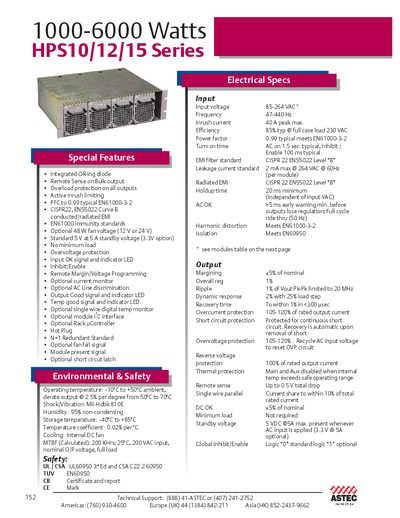

This document describes the special features, electrical specifications, input, output and leakage current standards of HPS10/12/15 series of 1000-6000 watts
This handbook describes the HPS10/12/15 power modules, covering their special features such as integrated OR-ing diode, remote sense, overload protection, and optional fan voltage. It also lists environmental and safety data, including operating temperature ranges, shock/vibration standards, and certifications.
Detailed electrical specifications are provided, including input voltage, frequency, inrush current, efficiency, power factor, and turn‑on time. Pin‑out diagrams and connector assignments for AC input, DC output, and control interfaces are included, along with optional module options and rack dimensions.
| Input voltage range | 85‑264 VAC |
|---|---|
| Input frequency range | 47‑440 Hz |
| Inrush current (peak max) | 40 A |
| Efficiency (typical) | 85% at full load 230 VAC |
| Power factor (typical) | 0.99 |
| Turn‑on time | 1.5 s typical |
| Operating temperature (ambient) | -10°C to +50°C |
| Safety certifications | UL, CSA, TUV, EN60950 |
The modules accept an input voltage from 85 V to 264 V AC.
The series meets UL, CSA, TUV, and EN60950 safety standards.
Typical efficiency is 85 % at full case load on 230 V AC.
The modules operate from –10 °C to +50 °C ambient temperature.
