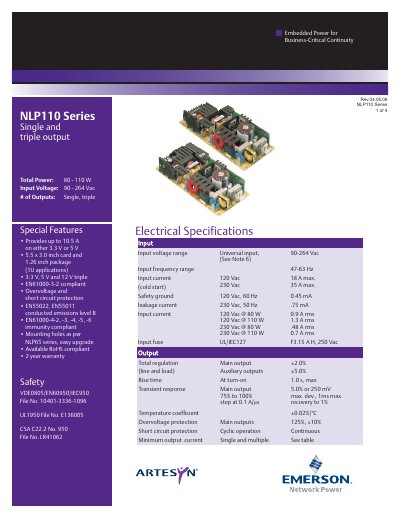

NLP110 Series Embedded Power for Business-Critical Continuity
The NLP110 Series power modules from Emerson provide single or triple output configurations with up to 10.5 A per output at 3.3 V, 5 V or 12 V. They are designed for business‑critical continuity applications, meet EN61000‑3‑2, EN55022, EN55011 and other international standards, and include over‑voltage and short‑circuit protection.
The modules operate from a universal input voltage of 90‑264 Vac, deliver total power between 80 W and 110 W, and feature thermal management options such as natural convection and forced‑air cooling. Mechanical dimensions, connector types, and compliance information are detailed for integration into 1U equipment.
| Input voltage range | 90‑264 Vac |
|---|---|
| Total power | 80‑110 W |
| Output regulation | ±2.0 % (main), ±5.0 % (auxiliary) |
| Efficiency (80 W load) | ≥75 % |
| Weight | 283 g (10 oz) |
| MTBF | 220,000 hours (min) |
The modules accept a universal input voltage from 90 Vac to 264 Vac.
Single‑output units are limited to a maximum continuous output power of 75 W (up to 110 W for higher‑rated models).
