This document describes the features and characteristics of the TLP150 series single output embedded power produced by Dinghao, including low power consumption, suitable for 1U applications, compliant with PFC and EN61000-3-2 standards, integrated Or-ing diode and control monitoring functions, overcurrent, overvoltage and overtemperature protection, etc.
The TLP150 series is a 150 W embedded power module designed for business‑critical continuity in 1U applications. It features a low‑profile design, active PFC, integrated Or‑ing diode, current sharing, and comprehensive protection functions such as over‑current, over‑voltage and over‑temperature.

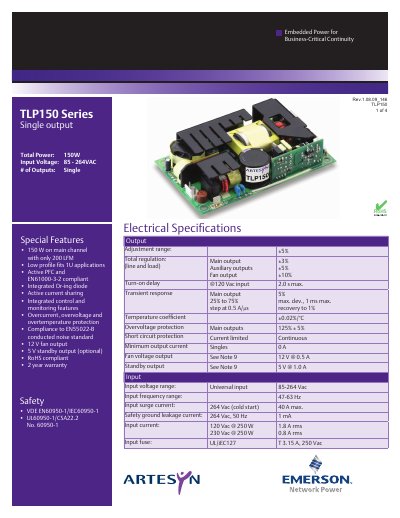

The datasheet lists electrical specifications, environmental limits, mechanical dimensions, connector types, and compliance with safety standards (UL, IEC, VDE). Ordering information and optional standby output options are also provided.
| Total Power | 150 W |
|---|---|
| Input Voltage Range | 85 V – 264 V AC |
| Output Adjustment Range | ±5 % |
| Weight | 260 g (9.2 oz) |
| Safety Approvals | UL/cUL, UL60950‑1/CSA22.2, VDE EN60950‑1/IEC60950‑1 |
The module operates from 85 V to 264 V AC.
Yes, an optional 5 V standby output is available whenever AC input is present.
It complies with UL/cUL, UL60950‑1/CSA22.2, and VDE EN60950‑1/IEC60950‑1 standards.
