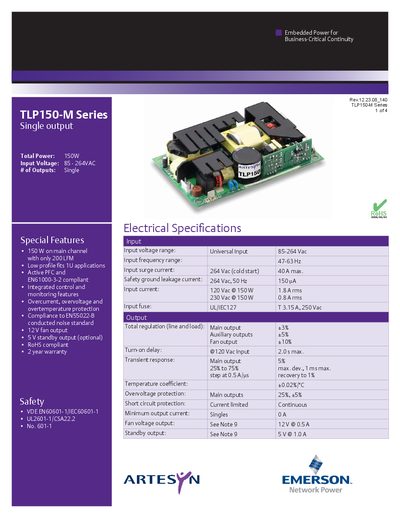

TLP150-M Series is a 150W single output power supply launched by Dinghao. It has a 12V fan output and a 5V standby output. It supports the EN61000-3-2 standard and meets the RoHS specification. It provides a 2-year warranty.
The TLP150-M Series is an embedded power solution designed for business‑critical continuity. It delivers a single 150 W output, supports universal 85‑264 VAC input, and incorporates active PFC, over‑current, over‑voltage, and over‑temperature protection. The unit meets EN55022, EN61000‑3‑2, and various safety standards such as VDE EN60601‑1 and UL2601‑1.
Key specifications include 13.15 A at 250 VAC output, 81 % typical efficiency at 115 VAC, a weight of 260 g, and an MTBF of up to 900 000 hours. The datasheet also details environmental limits, connector options, and ordering information for optional fan and standby outputs.
| Total Power | 150 W |
|---|---|
| Input Voltage Range | 85‑264 VAC |
| Efficiency (115 VAC) | 81 % typical |
| Weight | 260 g (9.2 oz) |
| MTBF | 900,000 hours (min.) |
| Fan Output Voltage | 12 V @ 0.5 A |
| Standby Output Voltage | 5 V @ 1.0 A (optional) |
The unit accepts a universal input voltage range of 85 VAC to 264 VAC.
An optional 5 V standby output is available whenever AC input is present.
The fan output provides 12 V when the main output is present.
