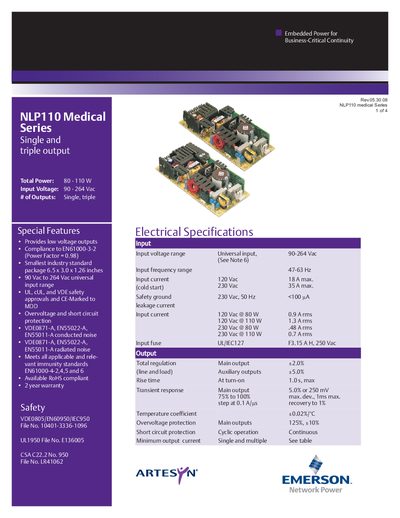

This document describes the features of the Embedded Power for Business-Critical Continuity NLP110 Medical Series single and triple output. The product provides low voltage outputs, compliance with EN61000-3-2 standard, smallest industry standard package, universal input range of 90-264 Vac, and features such as overvoltage and short circuit protection.
The NLP110 Medical Series provides 80‑110 W of total power with a universal input range of 90‑264 Vac. It is offered in single‑output and triple‑output configurations and meets stringent medical and EMC standards, including EN61000‑3‑2, EN55022, and IEC60601‑1. The unit includes over‑voltage, short‑circuit protection and is RoHS‑compliant with a two‑year warranty.
The datasheet details electrical performance, environmental limits, connector pin assignments, and mechanical dimensions. It also lists safety approvals (UL, cUL, VDE, CE‑MDD) and provides guidance on mounting, minimum load requirements, and EMI testing procedures.
| Total Power | 80‑110 W |
|---|---|
| Input Voltage Range | 90‑264 Vac |
| Number of Outputs | Single, triple |
| Safety Approvals | UL, cUL, VDE, CE‑MDD, CSA |
| Operating Temperature Range | -40 °C to +85 °C |
| Maximum Isolation Voltage | 4000 Vac |
The NLP110 operates from 90 Vac to 264 Vac.
It is offered in single‑output and triple‑output versions.
The unit is UL, cUL, VDE, CSA certified and CE‑marked to MDD.
