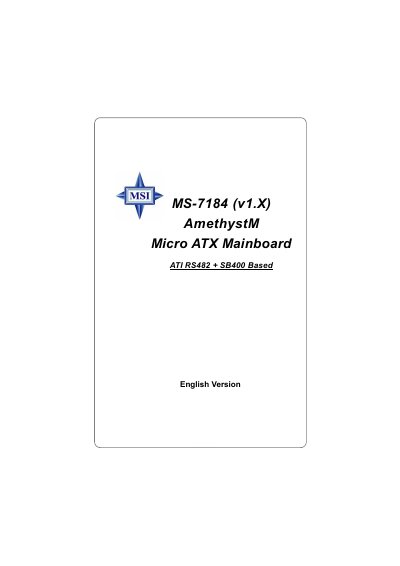

This is the user manual for the MSI MS-7184 (v1.X) motherboard, which provides detailed instructions on how to use the motherboard.
This manual covers everything needed to install and operate the MSI MS-7184 Micro ATX mainboard, including safety instructions, component layout, and BIOS features. It explains the supported CPUs, memory configurations, storage interfaces, and peripheral connections.
Detailed sections guide you through hardware setup, jumper settings, connector pinouts, and troubleshooting, helping both novice and experienced users get the most out of the board.
| Supported CPUs | 64‑bit AMD Athlon 64 and Athlon 64 FX (Socket 939) |
|---|---|
| Chipset | ATI RS482 and ATI SB400 |
| Memory Type | DDR 333/400, dual‑channel, up to 4 GB |
| Maximum Memory Capacity | 4 GB (non‑ECC) |
| SATA Ports | 2 ports, up to 150 MB/s |
| USB Ports | 8 USB 2.0 ports (4 rear, 4 front) |
| Form Factor | Micro‑ATX 24.4 cm × 24.4 cm |
It supports 64‑bit AMD Athlon 64 and Athlon 64 FX processors for Socket 939.
The board provides eight USB 2.0 ports – four on the rear I/O and four via the front bracket.
The board can handle up to 4 GB of DDR 333/400 memory without ECC.
Yes, it includes two SATA ports with a transfer rate of up to 150 MB/s.
