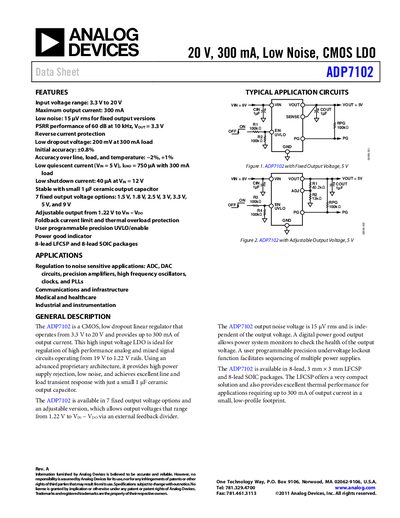

The ADP7102 is a 20 V, 300 mA, low noise, CMOS LDO manufactured by Analog Devices. The product features low noise, high accuracy, and low quiescent current.
The ADP7102 is a CMOS low‑dropout linear regulator that operates from 3.3 V to 20 V and delivers up to 300 mA of output current. It offers low noise (15 µV rms), high PSRR (60 dB at 10 kHz), and a dropout voltage as low as 200 mV at full load. The device is available in 7 fixed output voltages and an adjustable version covering 1.22 V to Vin‑Vbo.
Typical applications include precision analog circuits such as ADCs, DACs, amplifiers, high‑frequency oscillators, clocks, PLLs, as well as communications, medical, and industrial instrumentation. The LFCSP and SOIC packages provide a compact footprint and good thermal performance.
| Input voltage range | 3.3 V to 20 V |
|---|---|
| Maximum output current | 300 mA |
| Low dropout voltage (300 mA load) | 200 mV |
| Output noise (fixed versions) | 15 µV rms |
| Shutdown current (Vin = 12 V) | 40 pA |
| Power‑supply rejection ratio (10 kHz) | 60 dB |
| Fixed output voltage options | 1.5 V, 1.8 V, 2.5 V, 3 V, 3.3 V, 5 V, 9 V |
| Adjustable output range | 1.22 V to Vin‑Vbo |
The ADP7102 operates from 3.3 V up to 20 V.
It can supply up to 300 mA of output current.
The shutdown current is 40 pA when Vin is 12 V.
The dropout voltage is 200 mV at a 300 mA load.
