Analog Devices ADP5040 Datasheet Handbook

The ADP5040 is a high-performance micro power management unit (PMU) that integrates a 1.2A buck regulator and two 300mA low dropout regulators

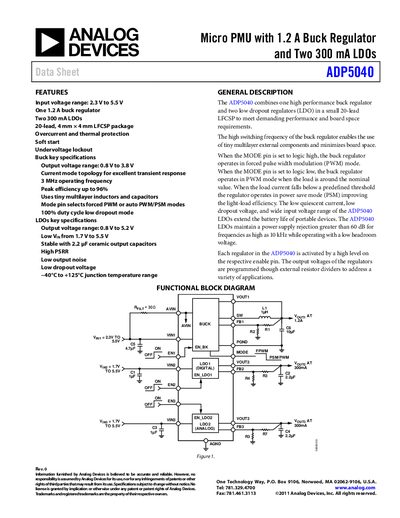

Analog Devices ADP5040 Datasheet Handbook - cover page
Brand
Analog Devices
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
40
File format
PDF
File size
3.5 MB
Published
04 May, 2012
Updated
01 October, 2023
Model
ADP5040
MD5 checksum
A03C41D4DD94E624FB9B6481837C4261

About this manual

The ADP5040 is a mixed‑signal power management IC that combines a high‑performance 1.2 A buck regulator with two 300 mA low‑dropout regulators (LDOs) in a compact 20‑lead 4 mm × 4 mm LFCSP package. It offers a wide input voltage range, over‑current and thermal protection, soft‑start, and undervoltage lockout, making it suitable for portable and battery‑powered devices.

The document provides detailed specifications such as input and output voltage ranges, switching frequency, efficiency, and PSRR, as well as pin configurations, typical performance curves, recommended external components, and thermal considerations. It also includes a functional block diagram, layout guidelines, and a bill of materials for designers.

What's inside

  • Features
  • General Description
  • Functional Block Diagram
  • Specifications
  • Buck Specifications
  • LDO Specifications
  • Pin Configuration
  • Typical Performance Characteristics
  • Recommended Capacitor Selection
  • Absolute Maximum Ratings

Specifications

Input voltage range2.3 V to 5.5 V
Buck regulator output voltage range0.8 V to 3.8 V
LDO output voltage range0.8 V to 5.2 V
Switching frequency3 MHz
Peak efficiencyup to 96 %
Package20‑lead 4 mm × 4 mm LFCSP

Frequently asked questions

What is the input voltage range of the ADP5040?

The ADP5040 operates with an input voltage from 2.3 V to 5.5 V.

How many LDO regulators are integrated in the ADP5040?

The device contains two 300 mA low‑dropout regulators.

Which pin enables the buck regulator?

The EN1 pin enables the buck regulator; high turns it on, low turns it off.

What does the MODE pin control?

The MODE pin selects forced PWM mode or auto PWM/PSM (power‑save) mode for the buck regulator.
