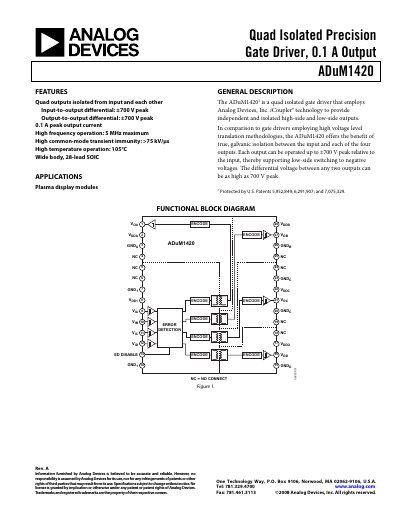

The ADuM1420 quad isolated gate driver provides four independent high‑side and low‑side outputs with true galvanic isolation. Each channel can handle up to ±700 V peak differential voltage and 0.1 A peak output current, making it suitable for plasma display modules and other high‑voltage applications. The device operates from a 4.5‑5.5 V input supply and 12‑18 V output supplies, with a maximum switching frequency of 5 Mbps.
The datasheet includes full electrical characteristics, package dimensions, safety‑related specifications, and typical performance graphs. Recommended operating temperature ranges from –40 °C to +105 °C, and the part meets UL 1577 insulation standards with a 1667 V rms dielectric rating. Pin configurations, functional block diagram, and power‑up/down behavior are also documented.
| Input Supply Voltage (VDD1) Range | 4.5 V – 5.5 V |
|---|---|
| Output Supply Voltage (VDDA, VDDB) Range | 12 V – 18 V |
| Peak Output Current | 0.1 A |
| Maximum Switching Frequency | 5 Mbps |
| Input‑to‑Output Resistance | 10^12 Ω |
| Rated Dielectric Insulation Voltage | 1667 V rms (1‑minute) |
| Operating Temperature Range | -40 °C to +105 °C |
The ADuM1420 is rated for 1667 V rms dielectric insulation for a 1‑minute duration.
The device is specified to operate from –40 °C up to +105 °C.
The ADuM1420 supports up to 5 Mbps switching frequency.
