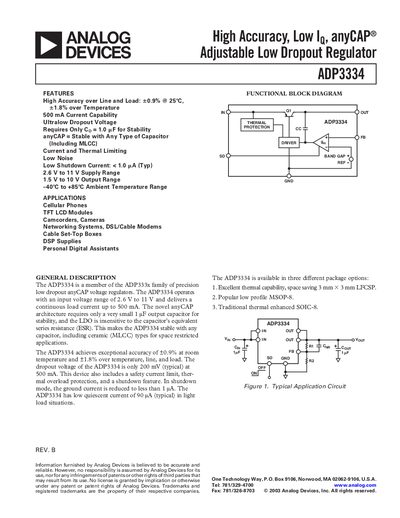

The ADP3334 is a member of the ADP333x family of precision low dropout anyCAP voltage regulators. The ADP3334 features high accuracy, low quiescent current, and stability with any type of capacitor.
The ADP3334 is a precision low‑dropout (LDO) regulator that operates from 2.6 V to 11 V input and delivers up to 500 mA of continuous load current. It features an anyCAP architecture that requires only a 1 µF output capacitor for stability and provides low noise, low quiescent current, and built‑in current‑limit and thermal‑shutdown protection.
Typical applications include cellular phones, TFT LCD modules, camcorders, networking equipment, set‑top boxes, and other portable electronics. The device is offered in three package styles—3 mm × 3 mm LFCSP, MSOP‑8, and SOIC‑8—allowing designers to choose the best footprint for their board layout.
| Output Voltage Accuracy (over temperature) | ±1.8 % |
|---|---|
| Maximum Load Current | 500 mA |
| Typical Dropout Voltage at 500 mA | 200 mV |
| Input Voltage Range | 2.6 V to 11 V |
| Output Voltage Range | 1.5 V to 10 V |
| Low Shutdown Current (typ) | <1 pA |
| Quiescent Current (typ, light load) | 90 µA |
The ADP3334 operates with an input voltage from 2.6 V up to 11 V.
It can deliver a continuous load current of up to 500 mA.
At 500 mA load the typical dropout voltage is about 200 mV.
The device is offered in three packages: 3 mm × 3 mm LFCSP, MSOP‑8, and SOIC‑8.
