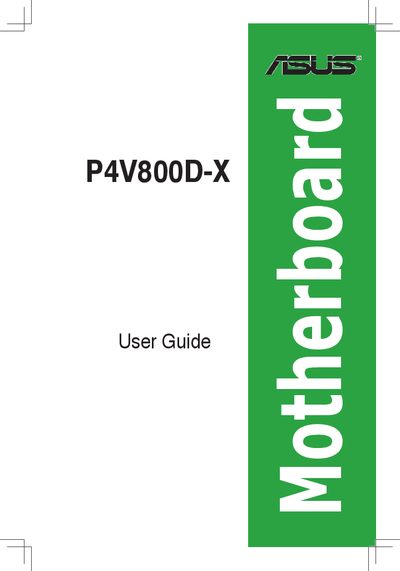

This manual introduces the features and usage of the P4V800D-X motherboard.
This guide introduces the P4V800D-X motherboard, detailing its features, layout, and hardware setup procedures. It covers CPU socket information, memory configurations, expansion slots, and connector locations.
Subsequent chapters explain BIOS configuration, RAID setup, and the contents of the support CD, along with safety notices and FCC compliance statements.
| CPU Socket | Socket 478 for Intel Pentium 4/Celeron up to 3.4GHz+ |
|---|---|
| Chipset | VIA PT880 Ultra / VIA VT8237R PLUS |
| Front Side Bus | 800/533/400 MHz |
| Memory Slots | 4 x 184‑pin DIMM sockets, up to 4 GB, DDR SDRAM |
| Expansion Slots | 1 x AGP 8X, 1 x PCI‑Express x16 (x4 mode), 3 x PCI |
| Storage Interfaces | 2 x UltraDMA 133, 2 x Serial ATA (RAID 0/1/JBOD) |
| Audio Codec | ADI AD1888 SoundMAX 6‑channel CODEC, S/PDIF out |
| LAN | Realtek 10400 Mbps Ethernet |
| USB Ports | Supports up to eight USB 2.0 ports |
It uses a Socket 478 compatible with Intel Pentium 4 and Celeron CPUs up to 3.4 GHz.
The board supports up to eight USB 2.0 ports.
It supports RAID 0 for performance, RAID 1 for data protection, and RAID SPAN for capacity.
