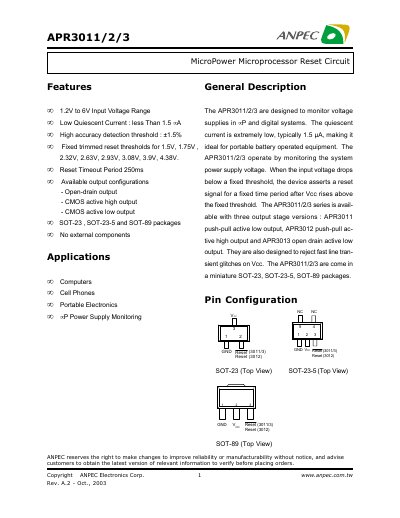

The APR3011/2/3 is a low-power microprocessor reset circuit manufactured by ANPEC Electronics Corp. It has a working voltage range of 1.2V to 6V and a static current of less than 1.5µA, making it ideal for portable battery operated equipment. It can be used in a variety of applications, including switch-mode power supplies, computers, and portable electronic devices.
The APR3011/2/3 series are micro‑power reset circuits designed to monitor supply voltage in microprocessors and digital systems. They feature an extremely low quiescent current (typically 1.5 µA) and operate over a 1.2 V to 6 V input range, providing a reliable reset signal when the supply drops below a fixed threshold.
Three output versions are offered: APR3011 with push‑pull active‑low output, APR3012 with push‑pull active‑high output, and APR3013 with open‑drain active‑low output. The devices are supplied in SOT‑23, SOT‑23‑5, and SOT‑89 packages and include specifications for reset threshold, timeout period, and transient rejection capabilities.
| Quiescent Current | 1.5 µA typical |
|---|---|
| Input Voltage Range | 1.2 V to 6 V |
| Reset Timeout Period | 250 ms typical |
| Reset Threshold Options | 1.5 V, 1.75 V, 2.32 V, 2.63 V, 2.93 V, 3.08 V, 3.9 V, 4.38 V |
| Output Current (Low) | 1.2 mA sink |
| Output Current (High) | 0.6 mA source |
| Package Types | SOT‑23, SOT‑23‑5, SOT‑89 |
The typical quiescent current is 1.5 µA.
APR3011 provides a push‑pull active‑low output, APR3012 a push‑pull active‑high output, and APR3013 an open‑drain active‑low output.
The reset timeout period is typically 250 ms.
It supports an input voltage range from 1.2 V to 6 V.
