The APW7046 is a power controller that supports three regulated voltage outputs, including VCORE (1.15~1.50V), VMEM (2.40~3.15V) and VTT (1.25V). It adopts a single-loop control design and supports voltage-mode PWM control. The product has excellent output voltage regulation performance and fast transient response. It has built-in feedback compensation function and supports 0%~100% duty ratio control. In addition, the product also integrates over-voltage and over-current fault monitoring functions. The operating frequency is 200kHz and it uses a 24-pin SOIC package. The product is mainly used in mainboard DDR, AGP/PCI graphics card power regulation areas.

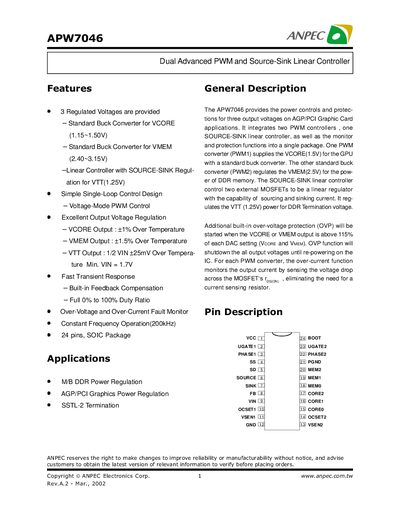

The APW7046 is a dual advanced PWM and source‑sink linear controller designed for AGP/PCI graphics card power regulation. It integrates two buck converters for VCORE and VMEM, a source‑sink linear regulator for VTT, and built‑in over‑voltage and over‑current protection.
The document provides electrical characteristics, pin descriptions, ordering information, mechanical dimensions, and reliability test data, enabling designers to implement the device in power‑management circuits.
| Supply Voltage (VCC) | 15 V |
|---|---|
| Operating Ambient Temperature Range | 0 to 70 °C |
| Junction Temperature Range | 0 to 125 °C |
| Storage Temperature Range | -65 to +150 °C |
| Soldering Temperature | 300 °C for 10 seconds |
| Oscillator Free‑Running Frequency | 185 – 215 kHz |
| Shutdown Supply Current | 2.7 mA |
| Nominal Supply Current (SOURCE, SINK) | 8 mA |
| Max SOURCE Pin Drive | 0.8 mA |
| Max SINK Pin Drive | 0.8 mA |
The device operates from 0 °C up to 70 °C ambient temperature.
The maximum supply voltage (VCC) is rated at 15 V.
The internal oscillator runs at 185 kHz to 215 kHz.
Shutdown supply current is 2.7 mA, while nominal supply current for the SOURCE and SINK pins is 8 mA.
