APL78L05/12 is a three-terminal low current positive voltage regulator launched by ANPEC. It has a maximum input voltage of 30V, output voltages of 5V/12V, an output current of 100mA, no external components, and internal thermal overload protection and short-circuit limiting functions.

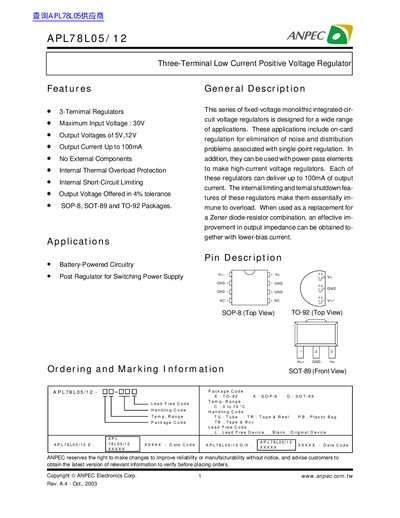

The document details the APL78L05/12 series of fixed-voltage monolithic integrated-circuit voltage regulators. These devices are designed for a wide range of applications, including on-card regulation to eliminate noise and distribution problems associated with single-point regulation. They feature internal thermal overload protection, short-circuit limiting, and require no external components for basic operation.
| Maximum Input Voltage | 30V |
|---|---|
| Output Voltages | 5V, 12V |
| Maximum Output Current | 100mA |
| Package Types | SOP-8, SOT-89 and TO-92 |
| Output Voltage Tolerance | 4% |
The absolute maximum rating for the input voltage is 30 Vdc.
Each of these regulators can deliver up to 100mA of output current.
