The APA2822 is a low-voltage dual-channel power amplifier designed for use in portable cassette players, active speakers, and radios. It features a wide supply voltage range, low crossover distortion, low quiescent current, support for bridge-tied or single-ended configurations, and both DIP-8 and SOP-8 packages.

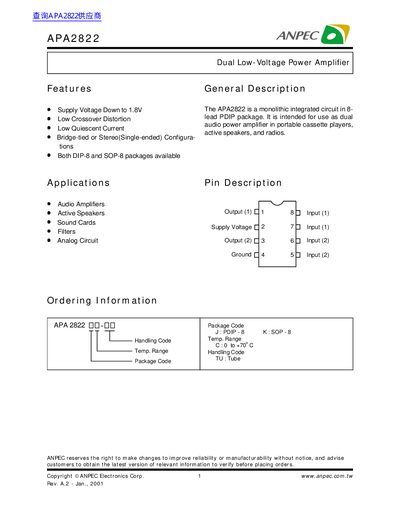

The ANPEC APA2822 is a monolithic integrated circuit designed as a dual audio power amplifier. It supports supply voltages down to 1.8V and features low crossover distortion and low quiescent current. The device can be configured in bridge-tied or stereo (single-ended) modes.
| Supply Voltage Range | 1.8 to 15 V |
|---|---|
| Quiescent Drain Current (Stereo) | 6 mA |
| Output Power (Bridge, Vs=9V) | 1000 mW |
| Closed Loop Voltage Gain | 39 dB |
| Power Bandwidth (Bridge) | 120 kHz |
The APA2822 is intended for use as a dual audio power amplifier in portable cassette players, active speakers, and radios.
Both DIP-8 and SOP-8 packages are available for the APA2822.
The absolute maximum supply voltage rating is 15 V.
