This document introduces the features of ANPEC APA0710/0711 1.1W Mono Low-Voltage Audio Power Amplifier, including working voltage, output power, frequency response, THD+N etc.

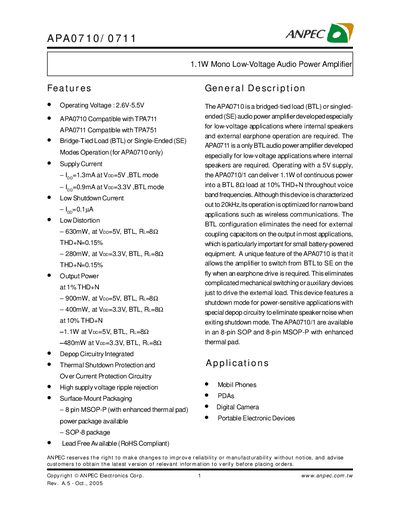

This document is a technical datasheet for the ANPEC APA0710 and APA0711 series of mono low-voltage audio power amplifiers. The APA0710 supports both Bridge-Tied Load (BTL) and Single-Ended (SE) modes, while the APA0711 is designed specifically for BTL operation. These devices are optimized for low-voltage applications such as mobile phones, PDAs, and digital cameras.
| Operating Voltage | 2.6V-5.5V |
|---|---|
| Supply Current (BTL, 5V) | 1.9mA |
| Output Power (10% THD+N, 5V) | 1.1W |
| Total Harmonic Distortion (BTL, 3.3V) | 0.15% |
| Bandwidth | 20 kHz |
Yes, the APA0710 is compatible with TPA711 and the APA0711 is compatible with TPA751.
The device operates with a supply voltage between 2.6V and 5.5V.
It delivers 900mW of output power into an 8Ω load.
The amplifier can operate in temperatures from -40°C to 85°C.
