APM2505NU is an N-Channel enhancement mode MOSFET with a rated current of 25V/50A and low resistance characteristics. It features a super high dense cell design and is reliable and rugged. This product can be used for power management in desktop computers or DC/DC converters.

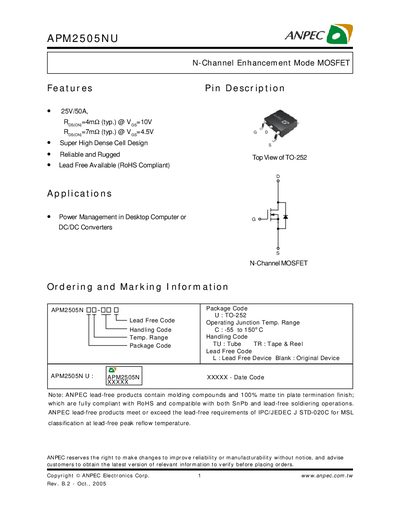

The document describes the ANPEC APM2505NU, an N-channel enhancement mode MOSFET designed for power management in desktop computers and DC/DC converters. Key features include a 25V drain-source breakdown voltage, a typical on-resistance of 4mΩ at Vgs=10V, and availability in lead-free TO-252 packages.
| Package Type | TO-252 |
|---|
The maximum junction temperature rating is 150 °C.
The device can be stored between -55 to 150 °C.
