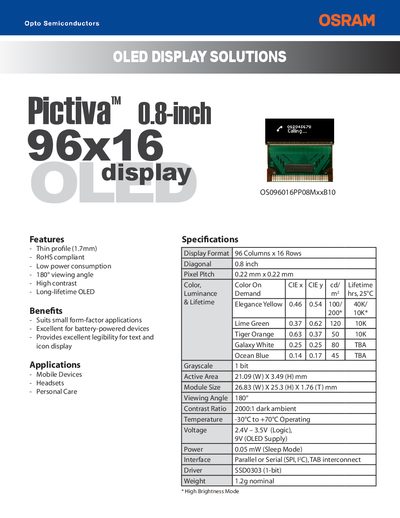

This document describes the features of OLED OLED Display Solutions 96x16, such as thin profile, RoHS compliance, low power consumption, 180° viewing angle, high contrast, and long lifetime. It is suitable for small form-factor and battery-powered devices, providing excellent legibility for text and icon display.
The Pictiva™ 0.8‑inch OLED module offers a 96‑column by 16‑row display with a thin 1.7 mm profile and high‑contrast 2000:1 ratio, making it ideal for small‑form‑factor applications such as mobile devices, headsets and personal‑care products. It features a 180° viewing angle, low power sleep mode (0.05 mW) and a long‑lifetime OLED source.
Key specifications include a 0.22 mm × 0.22 mm pixel pitch, operating temperature range of –30 °C to +70 °C, and supply voltages of 2.4‑3.5 V (logic) plus 9 V for the OLED. The module size is 26.83 mm × 25.3 mm × 1.76 mm, weighs 1.2 g, and can be interfaced via parallel or serial (SPI/I²C) connections with a SD0303 driver.
| Display format | 96 Columns x 16 Rows |
|---|---|
| Pixel pitch | 0.22 mm x 0.22 mm |
| Contrast ratio | 2000:1 |
| Viewing angle | 180° |
| Operating temperature | -30°C to +70°C |
| Supply voltage | 2.4V‑3.5V (Logic), 9V (OLED) |
| Sleep mode power | 0.05 mW |
| Active area | 21.09 mm (W) x 3.49 mm (H) |
| Module size | 26.83 mm x 25.3 mm x 1.76 mm |
| Weight | 1.2 g |
| Interface | Parallel or Serial (SPI, I²C), TAB |
| Driver | SD0303 (1‑bit) |
The display provides a 180° viewing angle.
It operates from –30 °C up to +70 °C.
It needs 2.4 V‑3.5 V for logic and 9 V for the OLED supply.
The module measures 26.83 mm × 25.3 mm × 1.76 mm.
