This document describes a oscilloscope product that is compatible with both digital and analog modes. The product features a real-time sampling rate of 100 MSa/s and a random sampling rate of 2 GSa/s. Each channel has a memory of 2kPts. The product supports multiple acquisition modes, including single, refresh, envelope, average, and roll. It also has an RS-232 interface for control and signal data transfer.

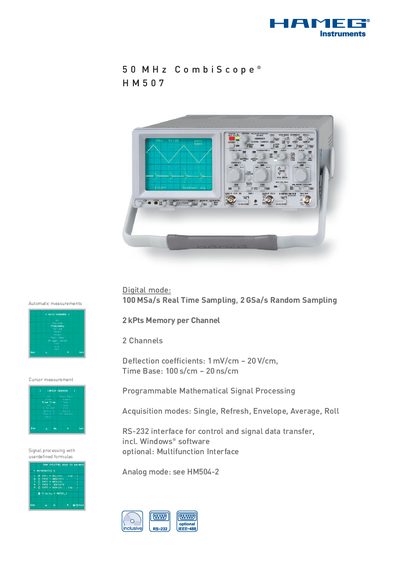

The HM507 CombiScope is a 50 MHz oscilloscope offering both digital and analog modes. It features 100 MSa/s real‑time sampling, 2 GSa/s random sampling, 2 kpts memory per channel, and two input channels. Control and data transfer are possible via an RS‑232 interface, with optional IEEE‑488 multifunction interface and Windows® software.
The manual also lists technical specifications such as bandwidth, input impedance, power consumption, dimensions, and safety class. It includes information on operating modes, trigger settings, accessory options, and safety guidelines for proper use.
| Bandwidth | 50 MHz |
|---|---|
| Real‑time sampling rate | 100 MSa/s |
| Random sampling rate | 2 GSa/s |
| Memory per channel | 2 kpts |
| Number of channels | 2 |
| Input impedance | 1 MΩ, 18 pF |
| Maximum input voltage | 400 V (DC + peak AC) |
| Power consumption | ≈ 42 W at 230 V/50 Hz |
| Dimensions (W×H×D) | 285 × 125 × 380 mm |
| Weight | ≈ 6.0 kg |
The scope includes an RS‑232 interface for control and signal data transfer, and an optional IEEE‑488 (HO79‑6) multifunction interface.
The instrument is valid after a 30‑minute warm‑up period at 23 °C.
