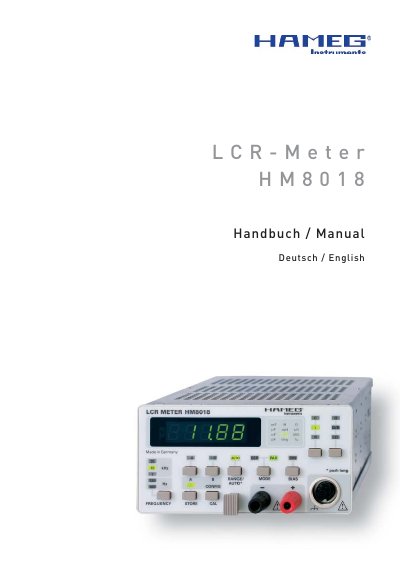

This manual introduces the use of the HAMEG HM8018 LCR bridge
The HM8018 is a modular LCR meter from HAMEG Instruments, offering measurements of inductance, capacitance, resistance, quality factor and more. It can be used with the optional HM8001‑2 base unit and supports both 2‑wire and 4‑wire measurement methods.
The manual covers CE‑marking information, technical data, safety rules, wiring recommendations, installation steps, detailed operation of the front‑panel controls, measurement functions, calibration, and service/maintenance procedures. This manual is written in German.
| Measurement functions | L, C, R, Q, D, I, Z |
|---|---|
| Number of measurement frequencies | 5 (100 Hz, 120 Hz, 1 kHz, 10 kHz, 25 kHz) |
| Basic accuracy | 0.5 % |
| Maximum resolution | 0.001 Ω, 0.001 pF, 0.01 µH |
| Measurement rate | 2 measurements per second |
| Frequency accuracy | ±100 ppm |
| Operating temperature | +10 °C … +40 °C (operation) |
Use double‑shielded IEEE‑bus cables, such as HAMEG’s HZ72S or HZ72L, for data lines.
The instrument provides five selectable frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz and 25 kHz.
The basic measurement accuracy is 0.5 %.
