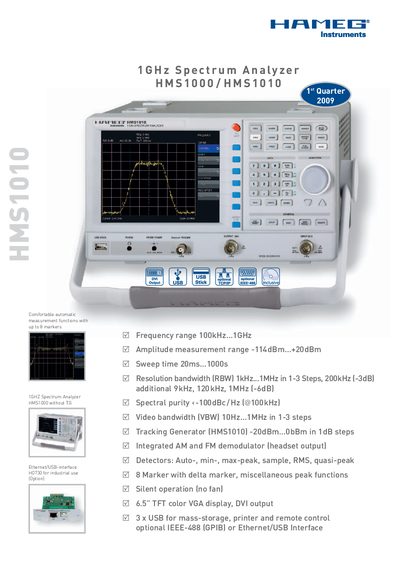

The PDF document provides information about the features and characteristics of the 1GHz Spectrum Analyzer HMS1000/HMS1010. The spectrum analyzer has a frequency range of 100kHz-1GHz, an amplitude measurement range of -114dBm to +20dBm, a sweep time of 20ms-1000s, and a resolution bandwidth of 1kHz-1MHz.
The HMS1000 and HMS1010 are 1 GHz (up to 3 GHz for the HMS3000 series) spectrum analyzers with a 6.5" TFT color VGA display, optional Ethernet/USB or GPIB interfaces, and a silent fan‑less design. They provide up to 8 markers, integrated AM/FM demodulation, and a tracking generator for signal testing.
Key features include a frequency range of 100 kHz‑1 GHz, amplitude measurement from –114 dBm to +20 dBm, sweep times from 20 ms to 1000 s, and a variety of resolution and video bandwidth settings. The unit is powered by 230 V, 40 W, weighs 3.6 kg and measures 285 × 175 × 220 mm.
| Frequency range | 100 kHz – 1 GHz |
|---|---|
| Amplitude measurement range | -114 dBm – +20 dBm |
| Sweep time | 20 ms – 1000 s |
| Resolution bandwidth (RBW) | 1 kHz – 1 MHz (1‑3 steps) |
| Video bandwidth (VBW) | 10 Hz – 1 MHz (1‑3 steps) |
| Display | 6.5" TFT color VGA display |
| Number of markers | 8 |
| Tracking generator output (HMS1010) | -20 dBm – 0 dBm |
| Input impedance | 500 Ω |
| VSWR (10 MHz – 1 GHz) | < 1.5 typ. |
| Power consumption | Max 40 W at 230 V, 50 Hz |
| Dimensions (W × H × D) | 285 × 175 × 220 mm |
| Storage temperature | -20 °C – +70 °C |
The HMS1000 and HMS1010 cover frequencies from 100 kHz up to 1 GHz.
The instrument provides eight markers with delta‑marker functionality.
Amplitude can be measured from –114 dBm to +20 dBm.
Standard USB/RS‑232, optional Ethernet/USB or IEEE‑488 (GPIB) interfaces are available.
