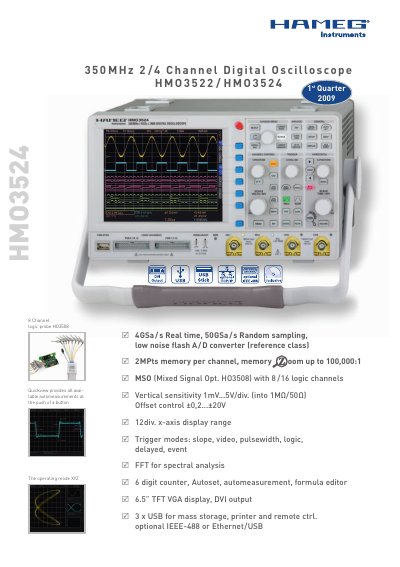

The document introduces a 4GSa/s real-time, 50GSa/s random sampling, low noise flash A/D converter. The product has 2MPts memory per channel, memory OOM up to 100,000:1. It also has a mixed signal function with 8/16 logic channels and vertical sensitivity of 1mV-5V/div. It features various trigger modes, spectral analysis, counter, autoset, and other functions. The product is equipped with a 6.5-inch TFT VGA display, DVI output, and supports USB, printer, and remote control interfaces.
The HAMEG HM03522/HM03524 is a 350 MHz digital oscilloscope with 2‑channel (expandable to 4) analog inputs and optional 8/16‑channel logic probe, offering real‑time sampling up to 2 GSa/s and random‑sampling up to 50 GSa/s. It includes 2 MPts memory per channel and a 6.5‑inch VGA TFT display.
The instrument provides USB/RS‑232 connectivity with optional IEEE‑488 GPIB or Ethernet/USB interfaces, and comes with accessories such as probes, a rack‑mount kit, and a power supply. Operating temperature ranges from +5 °C to 44 °C, and the unit weighs 3.6 kg.
| Bandwidth | 350 MHz (-3 dB) |
|---|---|
| Real‑time sampling rate | 2 GSa/s (2×2GSa/s) |
| Random sampling rate | 50 GSa/s |
| Memory per channel | 2 MPts |
| Display | 6.5" VGA Color TFT, 640 × 480 px |
| Dimensions (W × H × D) | 285 × 175 × 220 mm |
| Weight | 3.6 kg |
| Power consumption | Max 70 W at 230 V, 50 Hz |
| Measuring category | CAT I |
The oscilloscope has a bandwidth of 350 MHz (-3 dB).
Each channel provides 2 MPts of memory.
It includes a USB/RS‑232 interface and optional IEEE‑488 GPIB or Ethernet/USB adapters.
The unit measures 285 × 175 × 220 mm and weighs 3.6 kg.
