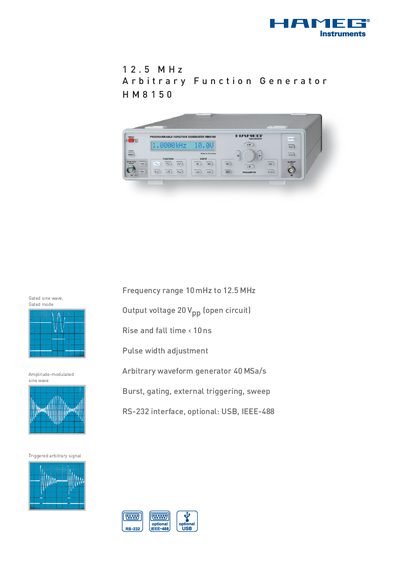

The HM8150 is a 12.5MHz arbitrary waveform generator from HAMEG. It has a frequency range of 10mHz to 12.5MHz, 20Vpp output voltage, 10ns rise and fall time, 40MSa/s sampling rate, support burst, gating, external triggering, scanning, RS-232 interface, optional USB, IEEE-488 interface.
The HAMEG HM8150 is a 12.5 MHz arbitrary function generator offering a wide frequency range from 10 mHz up to 12.5 MHz and a 20 Vpp open‑circuit output. It provides multiple waveform types—including sine, square, triangle, pulse and user‑defined arbitrary shapes—plus burst, gating and sweep functions.
The instrument features a 40 MSa/s output rate, <10 ns rise/fall times, RS‑232, optional USB and IEEE‑488 interfaces, and a 16‑character LCD. Power is supplied from 115/230 V mains, and the unit measures 285 × 75 × 365 mm, weighing about 5 kg.
| Frequency range | 10 mHz to 12.5 MHz |
|---|---|
| Output voltage (open circuit) | 20 Vpp |
| Rise / fall time | <10 ns |
| Arbitrary waveform output rate | 40 MSa/s |
| Resolution | 5 digit, max. 10 mHz |
| Accuracy | +1 digit + 5 mHz |
| Temperature coefficient | 0.5 ppm/°C |
| Harmonic distortion (1 Vpp, f<500 kHz) | 65 dBc |
| Total harmonic distortion (1 Vpp, 100 kHz) | 0.05 % |
| Overshoot | <5 % |
| Pulse width range | 100 ns to 80 s |
| Duty cycle (max) | 90 % |
| Output impedance | 500 Ω |
| Power supply | 115/230 V, 50/60 Hz |
| Power consumption | ≈20 W |
| Operating temperature | +10 °C to +40 °C |
| Dimensions (W×H×D) | 285 × 75 × 365 mm |
| Weight | ≈5 kg |
The HM8150 covers frequencies from 10 mHz up to 12.5 MHz.
It can output up to 20 Vpp open‑circuit.
Yes, a USB interface is available as an optional accessory.
The rise and fall time is less than 10 ns.
