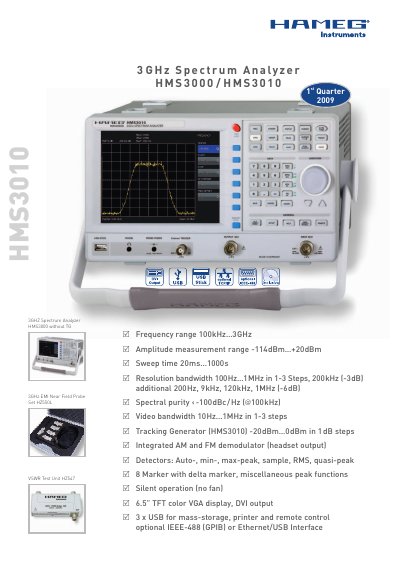

HMS3000/HMS3010 3GHz spectrum analyzer has a frequency range of 100kHz~3GHz, an amplitude measurement range of -114dBm~+20dBm, a scanning time of 20ms~1000s, a resolution bandwidth of 100Hz~1MHz, a spectral purity of -100dBc/Hz(@100kHz), a video bandwidth of 10Hz~1MHz, a tracking generator of -20dBm~0dBm, an AM/FM demodulator, 8 markers, silent operation(no fan), a 6.5-inch TFT color VGA display, a DVI output, 3 USB interfaces(for mass storage, printer and remote control), and support for IEEE-488(GPIB) or Ethernet/USB interface
The handbook describes the HAMEG HMS3000/HMS3010 3 GHz spectrum analyzer, highlighting its 6.5" TFT color VGA display, DVI output, and multiple USB ports for mass‑storage, printing and remote control. Optional interfaces include IEEE‑488 (GPIB) and Ethernet/USB, while the device features a tracking generator, integrated AM/FM demodulator, and various detector modes.
Technical specifications such as frequency range (100 kHz – 3 GHz), amplitude measurement range (‑114 dBm – +20 dBm), sweep time (20 ms – 1000 s), and resolution/video bandwidths are detailed, along with accessories, safety information, and physical dimensions (285 × 175 × 220 mm, 3.6 kg).
| Frequency range | 100 kHz – 3 GHz |
|---|---|
| Amplitude measurement range | -114 dBm – +20 dBm |
| Sweep time | 20 ms – 1000 s |
| Resolution bandwidth | 100 Hz – 1 MHz |
| Video bandwidth | 10 Hz – 1 MHz |
| Tracking generator output | -20 dBm – 0 dBm |
| Display size | 6.5" TFT color VGA |
| Dimensions | 285 × 175 × 220 mm |
The HMS3000/HMS3010 covers frequencies from 100 kHz up to 3 GHz.
The device supports up to 8 markers.
The analyzer features a 6.5‑inch TFT color VGA display.
