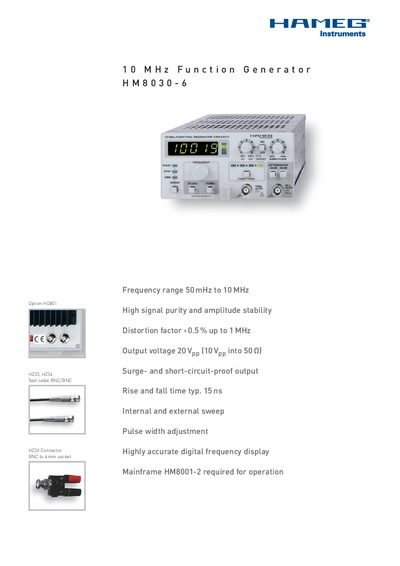

10 MHz Function Generator HM8030-6, frequency range 50 mHz to 10 MHz, high signal purity and amplitude stability, distortion factor <0.5%, output voltage 20 Vpp (10 Vpp into 50 Ω), surge and short-circuit proof output, rise and fall time typical 15 ns, internal and external sweep, pulse width adjustment, highly accurate digital frequency display
The HM8030-6 is a 10 MHz function generator that offers a frequency range from 50 mHz to 10 MHz, high signal purity, and an output voltage of 20 Vpp (10 Vpp into 50 Ω). It requires the HM8001-2 mainframe for operation and includes internal and external sweep capabilities.
The manual describes operating modes such as sine, square, triangle, and pulse, with options for free‑running, internal sweep, or external frequency modulation. It also lists technical specifications, power requirements, physical dimensions, and optional accessories like test cables and feed‑through terminals.
| Frequency range | 50 mHz to 10 MHz |
|---|---|
| Output voltage | 20 Vpp (10 Vpp into 50 Ω) |
| Rise/fall time | typ. 15 ns |
| Distortion factor | <0.5 % up to 1 MHz |
| Sweep speed | 20 ms to 15 s |
| Power supply | +5 V/200 mA (from mainframe +16 V/300 mA) |
| Weight | ≈0.80 kg |
| Input impedance | 6 kΩ, 1125 pF |
| Output impedance | 500 Ω |
It covers from 50 mHz up to 10 MHz.
The unit has two 20 dB attenuators (plus 0.2 dB) for a maximum attenuation of 60 dB.
