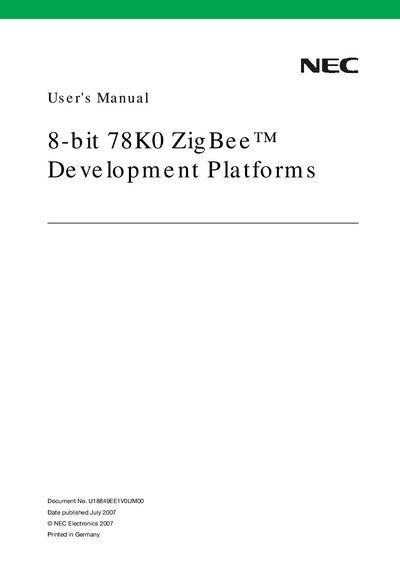

This document is the user manual for NEC Electronics' 8-bit 78K0 ZigBee™ development platforms, published in July 2007. It describes the features and characteristics of the platform.
The TK-78K0/KF2+UZ is an NEC Electronics 8‑bit starter kit designed for developing wireless networking applications using ZigBee™. It includes an NEC uPD78F0547D microcontroller, on‑board debug, USB or battery power, and a 2.4 GHz UZ2400 transceiver.
The manual covers system requirements, hardware installation, switch and LED functions, sample programs, and detailed schematic diagrams. It also explains how to install the IAR Embedded Workbench tools on Windows 2000/XP and provides sample code for RF testing, text chat, and LED control.
| Microcontroller | uPD78F0547D |
|---|---|
| CPU Clock | 16 MHz |
| Sub‑clock | 32.768 kHz |
| Flash Memory | 128 KB |
| RAM | 1024 B + 6144 B |
| I/O Ports | Up to 17 |
| Transceiver Chip | UZ2400 (2.4 GHz IEEE 802.15.4) |
| USB Interface | Version 1.1 or later |
| Minimum PC CPU | Pentium 200 MHz |
| Minimum PC RAM | 128 MB |
| Display Requirement | 256‑color 1024×768 |
| Disk Space | 200 MB |
| Supported OS | Windows 2000 or Windows XP |
It uses the NEC uPD78F0547D 8‑bit single‑chip microcontroller.
The board provides up to 17 I/O ports.
The board uses the UZ2400 2.4 GHz IEEE 802.15.4 transceiver chip.
