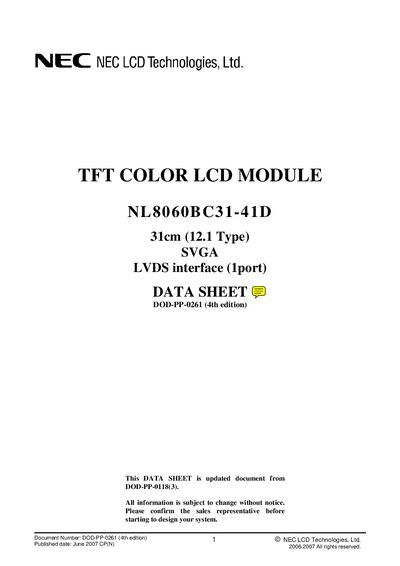

NL8060BC31-41D is a 31cm (12.1 Type) SVGA LVDS interface (1port) LCD module
The NL8060BC31-41D is a 31 cm (12.1‑inch) TFT color LCD module with an LVDS interface, high luminance, wide viewing angle and replaceable edge‑light backlight. It is intended for industrial use and complies with UL60950‑1 and RoHS.
The datasheet lists mechanical dimensions, pixel resolution, power consumption, contrast ratio, and detailed electrical ratings, as well as connection pin functions and timing diagrams for system designers.
| Display area | 246.0 mm (H) × 184.5 mm (V) |
|---|---|
| Diagonal size | 31 cm (12.1 inches) |
| Resolution | 800 × 600 pixels |
| Dot pitch | 0.1025 mm (H) × 0.3075 mm (V) |
| Module size | 280.0 mm (W) × 210.0 mm (H) × 11.0 mm (D) (typ.) |
| Weight | 670 g (typ.) |
| Contrast ratio | 600:1 (typ.) |
| Color depth | 16,777,216 colors (8‑bit input) |
| Power consumption | 6.8 W (typ.) |
| Backlight type | Edge‑light, 2 cold‑cathode fluorescent lamps |
| Signal interface | LVDS (1 port) |
It uses a single‑port LVDS interface.
The module consumes about 6.8 W typical, not including inverter loss.
The module measures 280.0 mm (W) × 210.0 mm (H) × 11.0 mm (D) (typ.).
The typical contrast ratio is 600:1.
