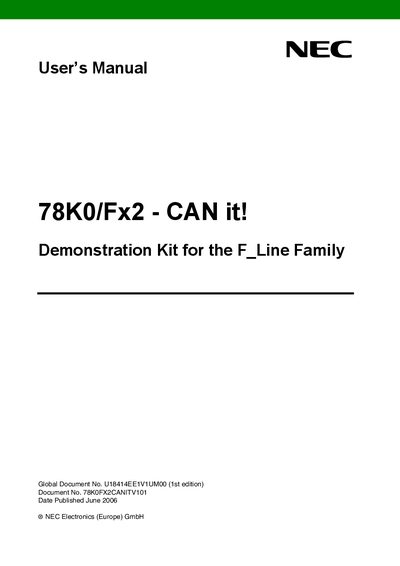

This is a user manual that introduces the functions and usage of NEC Electronics 78K0/Fx2-CAN it! Demonstration Kit.
This user manual describes the NEC 78K0/Fx2 CAN it! demonstration kit, a development board for the F_Line family. It covers the main features, system requirements, package contents, and safety information, as well as the revision history of the document.
The guide details hardware components such as the baseboard connectors, switches, LEDs, USB Mini‑B host connector, CAN connector CN8, external potentiometers, temperature sensor and LCD display. It also explains software installation steps for the IAR Embedded Workbench, device files, the FPL3 FLASH programming GUI, and driver setup for Windows 98SE/Me, Windows 2000, and Windows XP, plus troubleshooting and debugging procedures.
| LCD display | 12×2 characters |
|---|---|
| CAN connector | High Speed CAN connector CN8 |
| USB interface | Mini‑B type host connector (CN6) |
| Temperature sensor | Integrated on board |
No, the equipment is not marked with the CE‑symbol because it has no autonomous function.
Customers should incorporate redundancy, fire‑containment, and anti‑failure features in their designs to mitigate risks.
