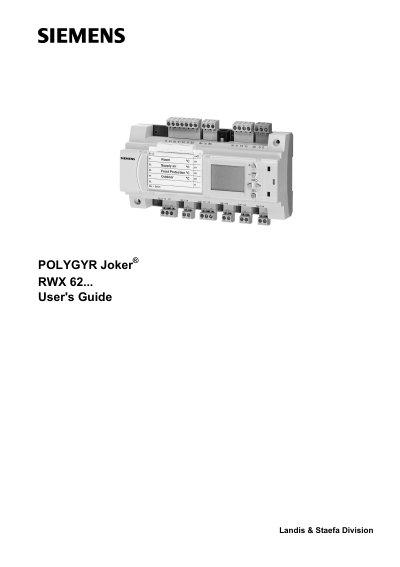

This manual mainly introduces the use, installation, maintenance and other information of Landis & Staefa Joker® RWX 62 products
The POLYGYR Joker RWX62 is a fully autonomous electronic universal controller designed for comfort ventilating, air‑conditioning and heating plants. It offers up to three configurable control loops, universal analog or binary inputs and separate analog or digital outputs, all operable from the front panel without extra tools.
The manual covers safety notes, packing, transport, mounting, commissioning, detailed operating instructions for plant operators and service technicians, configuration options, technical data and dimensions, plus an appendix of abbreviations and commissioning reports.
| Operating voltage | AC 24 V ±20 % |
|---|---|
| Frequency | 50 Hz / 60 Hz |
| Power consumption (RWX62.5030) | 4 VA |
| Output renewal speed | 1 s |
| Temperature measurement range | -35 °C … 130 °C |
| Temperature resolution (0 °C) | < 0.05 K |
| Temperature accuracy | -0.5 K … +0.5 K |
| Analog output range | -1 V … 11 V |
The controller operates on an AC 24 V supply (±20 %).
It can measure temperatures from –35 °C to 130 °C, with an extended range of –50 °C to 150 °C.
The controller provides three analog outputs (Y1…Y3) with a range of –1 V to 11 V.
