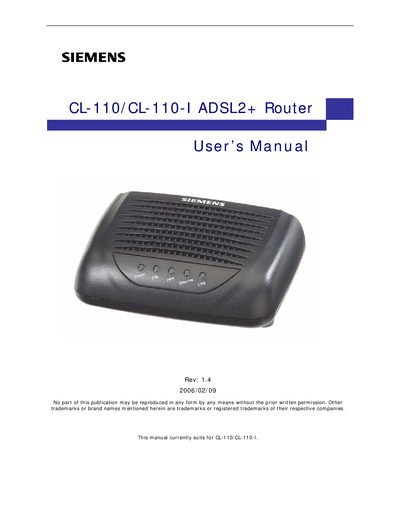

This manual is a CL-110/CL-110-I ADSL2+ router user manual, which introduces the use, installation and maintenance of the router
This manual covers safety precautions, FCC compliance, and unpacking instructions for the Siemens CL-110/CL-110-1 ADSL2+ Router. It explains proper power source usage, ventilation requirements, and handling of the device to avoid damage or fire hazards.
The guide details the router’s features such as ADSL/ADSL2/ADSL2+ rates, ATM and VLAN support, NAT/PAT for up to 128 LAN users, and firmware upgrade methods via HTTP, TFTP, or FTP. Configuration options include web interface, remote management, and security settings like firewalls and DoS protection.
| ADSL downstream/upstream rate | 8 Mbps / 1 Mbps |
|---|---|
| ADSL2 downstream/upstream rate | 12 Mbps / 1 Mbps |
| ADSL2+ downstream/upstream rate | 24 Mbps / 1.2 Mbps |
| PVC support | Up to 16 PVCs (UBR, CBR, VBR‑nrt, VBR‑rt) |
| MAC address learning table | Up to 4096 MAC addresses |
| LAN user capacity (NAT/PAT) | Up to 128 users |
Use only the power source indicated on the label, use the supplied adapter, ensure proper ventilation, avoid moisture, and do not overload the wall outlet.
Firmware can be upgraded through HTTP, TFTP, or FTP using the boot loader’s web page.
The router supports up to 24 Mbps downstream and 1.2 Mbps upstream with ADSL2+.
