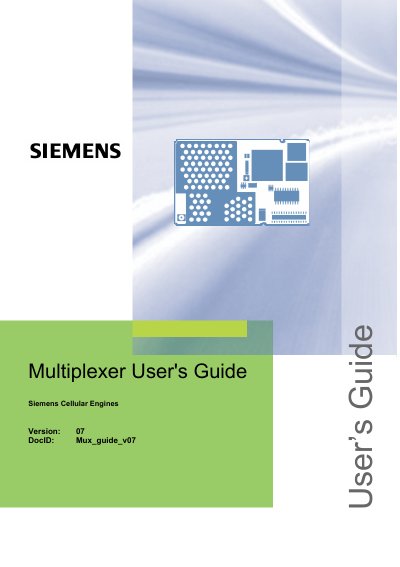

This document is a user's guide for Siemens Cellular Engines Multiplexer. The document provides the product for testing, evaluation, integration, and information purposes. The product is provided on an 'as is' basis and may contain deficiencies or inadequacies. The documentation and product are provided without any warranty. The risk of using the product remains with the recipient. This product is not intended for use in life support appliances or systems where a malfunction could result in personal injury. Applications incorporating the described product must be designed according to the technical specifications provided in these guidelines. Failure to comply with the required procedures can result in performance issues.
This guide provides a detailed description of the Siemens Multiplexer, covering its protocol architecture, virtual channels, and how it can be integrated into customer applications that use Siemens GSM engines. It includes information on flow control, power‑saving features, and the bandwidth of logical channels.
The document lists the supported GSM modules (e.g., AC43, MC35i, MC75, TC63, TC65) and explains version control, state diagrams, and the coding of TestCommand messages. It also details the physical interfaces (ASC0, optional ASC1, and USB) and the associated signaling lines.
| Default protocol version for MC75/TC63/TC65 | Version 3 |
|---|---|
| Physical interfaces | First serial interface ASC0, optional second ASC1, optional USB |
The terminal initiates the version check by sending a Test command via the multiplexer control channel; the module replies with the same value, then the module sends its own Test command and the terminal responds, after which both sides agree on a common protocol version.
The default configuration for those modules uses multiplexer protocol version 3.
The multiplexer supports the first serial interface ASC0, an optional second serial interface ASC1, and an optional USB interface.
