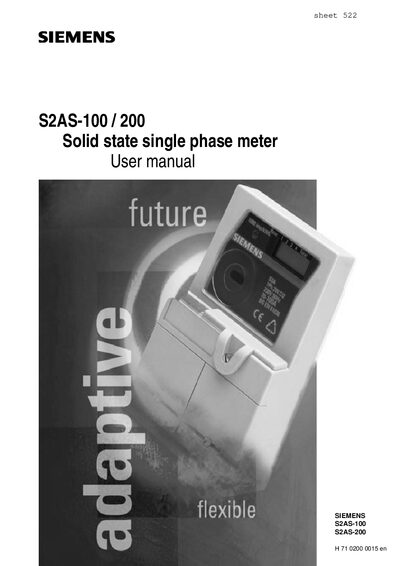

This manual presents the basic versions of the S2AS-100/200 solid state single-phase meters. This manual contains all the information required for applying the meters for the intended purpose. This includes: providing knowledge on the characteristics, construction and function of the meters; information on possible dangers, their consequences and measures to prevent any danger; details concerning the performance of all work throughout the service life of the meters (parametrizing, installation, commissioning, operation, maintenance, shutting down and disposal)
This user manual covers the S2AS‑100 and S2AS‑200 solid‑state single‑phase meters. It is intended for technically qualified personnel of energy supply companies who plan, install, commission, operate, maintain, decommission, and dispose of the meters.
The document is organized into sections on description, safety, construction, control elements, programming interface, installation, data readout, testing, fault detection, and disposal, providing detailed guidance for each phase of the meter's service life.
| Rated Voltage | 230V ± 10% |
|---|---|
| Mains Input Voltage Range | 0.8 up to 1.15 x Un |
| Basic Current (Ib) | 10A or 20A |
| Maximum Current (Imax) | 80A or 100A |
| Maximum Measuring Range | up to 120A |
| Voltage Circuit Power Consumption | < 0.5W |
| Current Circuit Power Consumption at Imax | < 0.25W |
| Accuracy Class | Class 2 (IEC 61036) |
| Operating Temperature Range | -10 °C to +45 °C |
| Storage Temperature Range | -25 °C to +70 °C |
The rated voltage is 230 V ± 10 %.
The basic current (Ib) can be either 10 A or 20 A.
Error messages are shown as the word “Error” followed by a numeric code.
No, the meter has no calibration link.
