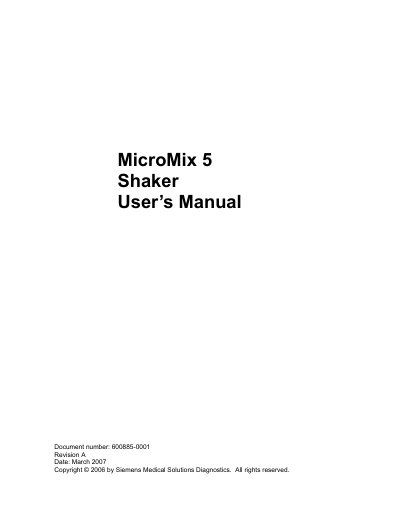

This manual describes the performance characteristics and specifications of the MicroMix 5 Shaker.
The MicroMix 5 is a fully programmable microplate and tube shaker designed for laboratory use. It can handle up to four 96‑well microplates, 120 tubes in a single rack, or two racks of 96 tubes, and offers a range of shaking amplitudes, frequencies, and directions.
This manual covers safety information, performance specifications, installation steps, control panel functions, operating instructions, precautions, hazard warnings, service and maintenance procedures, and a full list of preset shaking forms.
| Maximum power consumption | 50 VA |
|---|---|
| Power voltage range | 90 – 260 VAC, 47 Hz – 63 Hz |
| Maximum peak‑to‑peak shake amplitude | 2.5 mm |
| Shaker orbital speed range | 300 – 1800 rpm (5 – 30 cycles per second) |
| Maximum capacity | 4 microplates or 2 racks of 96 tubes |
| Footprint | 410 mm deep × 345 mm wide |
| Operating temperature | 0 to 40°C |
The power supply accepts 90 to 260 VAC and a frequency of 47 to 63 Hz.
The MicroMix 5 can hold up to four 96‑well microplates simultaneously.
The device operates between 0 °C and 40 °C.
Up to 2 kg can be evenly distributed on the shaking table from 5 Hz to 20 Hz.
