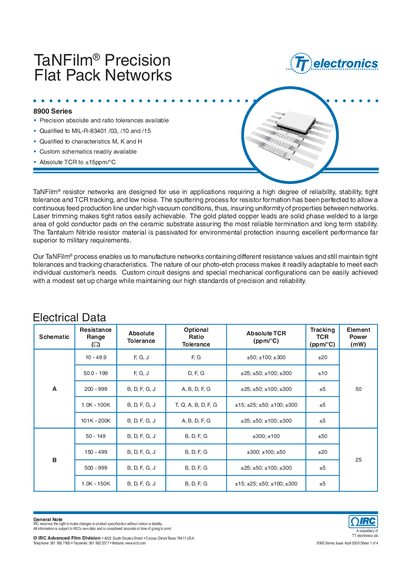

This document describes the features and characteristics of IRC Advanced Film Division's 8900 Series precision flat pack resistor networks. The product offers precision absolute and ratio tolerances, qualification to MIL-R-83401 /03, /10, and /15 standards, readily available custom schematics, absolute TCR up to ±15ppm/°C, etc.
The handbook describes TT Electronics' TaNFilm® resistor networks designed for high reliability, stability, tight tolerance, and low noise. It outlines the manufacturing process, laser trimming for precise ratios, and gold‑plated copper lead terminations that ensure long‑term stability.
Key sections include electrical data tables, MIL‑PRF‑83401 qualification characteristics, package specifications, physical dimensions, environmental test limits, and commercial ordering details for the 8900 Series flat‑pack networks.
| Absolute TCR | +15 ppm/°C |
|---|---|
| Lead Finish | Gold plated |
| MIL‑PRF‑83401 Characteristics | M, K, H |
The absolute temperature coefficient of resistance (TCR) is +15 ppm/°C.
The networks are qualified to the M, K, and H characteristics.
Standard lead termination is gold‑plated copper leads.
