This manual introduces BI Technologies' magnetic component products, including line isolation, filters, transformers, etc., and provides product specifications, application scenarios, packaging forms and other information.

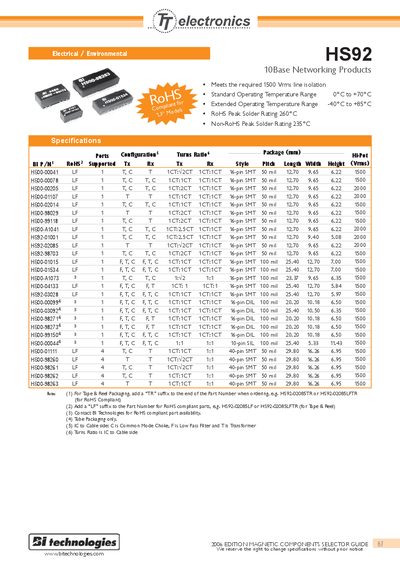

This one‑page selector guide lists the HS92 series magnetic components for 10Base networking applications, including key electrical specifications, temperature ranges, and RoHS compliance details. It also provides part‑number conventions for different packaging and compliance options.
The guide includes line isolation ratings, operating temperature limits, solder peak temperatures, and a table of part numbers with their associated configurations (TC, T, RT, etc.). Contact information for BI Technologies is provided for RoHS‑compliant part availability.
| Line isolation | 1500 Vrms |
|---|---|
| Standard operating temperature range | 0°C to +70°C |
| Extended operating temperature range | -40°C to +85°C |
| RoHS peak solder rating | 260°C |
| Non‑RoHS peak solder rating | 235°C |
The “LF” suffix denotes RoHS‑compliant parts.
Add a “TR” suffix to the end of the part number for Tape & Reel packaging.
Contact BI Technologies for RoHS‑compliant part availability.
