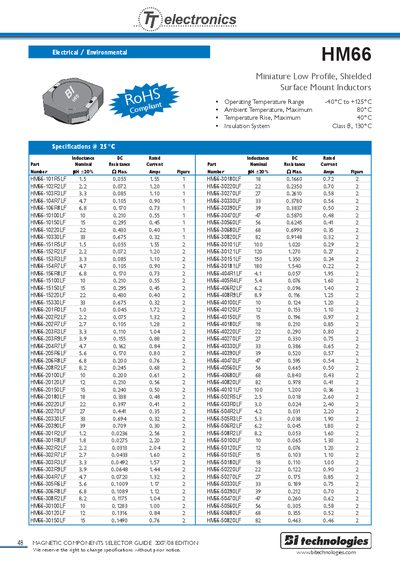

HM66 series miniature inductors
The HM66 series consists of miniature low‑profile, shielded surface‑mount inductors designed for a wide range of electronic applications. Each part is identified by a code such as HM66‑101RSLF, indicating its inductance value, tolerance, and packaging.
The inductors are supplied in standard tape‑and‑reel packaging, with detailed dimensions and ordering information provided for various case sizes. Specifications include operating temperature range, insulation class, and DC current ratings for each value.
| Operating Temperature Range | -40°C to +125°C |
|---|---|
| Maximum Ambient Temperature | 80°C |
| Maximum Temperature Rise | 40°C |
| Insulation System Class | Class B, 130°C |
| DC Rated Current (max) | up to 10 A |
The HM66 inductors operate from –40 °C up to +125 °C.
The HM66 series is supplied in standard tape‑and‑reel packaging, with reels sized for various case sizes.
The 1.5 µH HM66 inductor (part HM66‑801RSLF) is rated for a maximum DC current of 10 A.
