IRC TaNSil® SOIC resistor networks are the perfect solution for high volume applications that demand a small wiring board footprint.
The SOIC Series resistor networks from TT Electronics (via IRC Advanced Film Division) provide high‑density, low‑cost solutions for surface‑mount applications. They feature .050" lead spacing, RoHS‑compliant Sn/Pb or Pb‑free terminations, and ultra‑stable TaNSil® resistors on silicon substrates.

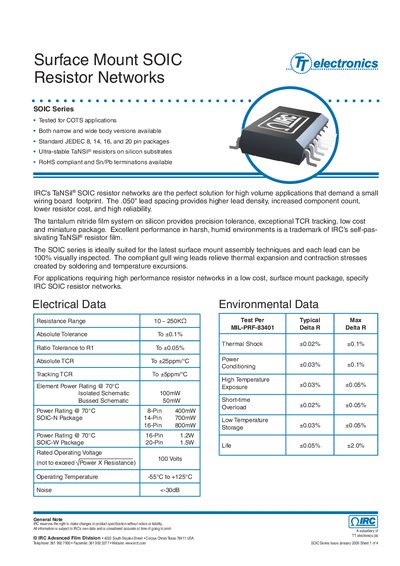

The datasheet includes electrical, environmental, physical, and ordering data, covering resistance ranges, tolerances, temperature coefficients, power ratings, and packaging options for 8‑, 14‑, 16‑, and 20‑pin JEDEC packages.
| Resistance Range | 10 - 250 kΩ |
|---|---|
| Absolute Tolerance | +0.1 % |
| Absolute TCR | +25 ppm/°C |
| Rated Operating Voltage | 100 V |
| Operating Temperature Range | -55 °C to +125 °C |
| Noise | < -30 dB |
| Power Rating @ 70 °C (8‑Pin) | 400 mW |
| Lead Spacing | .050 in |
The SOIC resistor networks have a .050 in lead spacing.
They operate from –55 °C up to +125 °C.
The rated operating voltage is 100 volts.
