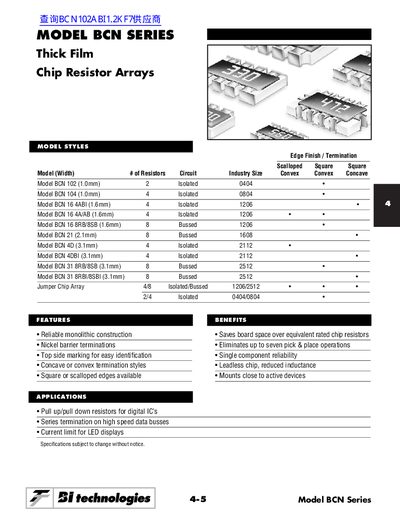

BCN Series Thick Film Chip Resistor Arrays are used as pull-up/pull-down resistors for digital IC’s, series termination on high speed data busses, and current limit for LED displays. The series features reliable monolithic construction, nickel barrier terminations, top side marking, and concave or convex termination styles.
The BCN Series chip resistor arrays from Biltechnologies are thick‑film components offered in various widths (1.0 mm, 1.6 mm, 2.1 mm, 3.1 mm) and configurations (isolated or bussed). They provide reliable monolithic construction, nickel‑barrier terminations and options for square or scalloped edges.
The document lists standard resistance ranges, tolerances, operating voltage, power ratings, environmental limits, mechanical dimensions and ordering codes, enabling designers to select the appropriate array for pull‑up/down, bus termination or LED current‑limit applications.
| Standard Resistance Range | 10 Ω to 1 MΩ (varies by model) |
|---|---|
| Tolerance | +5 % (standard), +1 % optional, +2 % optional |
| Maximum Operating Voltage | 25 V for BCN 102/104/16 8R/8S/21, 50 V for BCN 16 4/31 8R/8S, 75 V for BCN 4D |
| Power Rating (70 °C) | 63 mW per resistor / 125 mW per package (BCN 102, BCN 104, BCN 16 4A) |
| Operating Temperature Range | -55 °C to +125 °C |
| Temperature Coefficient of Resistance | +200 ppm/°C (BCN 4D, BCN 16 8R/8S, BCN 21, BCN 31) |
| Edge Finish Options | Square or scalloped edges; convex or concave terminations |
The standard tolerance is ±5 % (J tolerance), with optional ±1 % (F) and ±2 % (G) for selected models.
Both square and scalloped edges are offered, with convex or concave termination styles.
The BCN 102 array is rated for a maximum operating voltage of 25 V.
They are used as pull‑up/pull‑down resistors for digital ICs, series termination on high‑speed data buses, and current limiting for LED displays.
