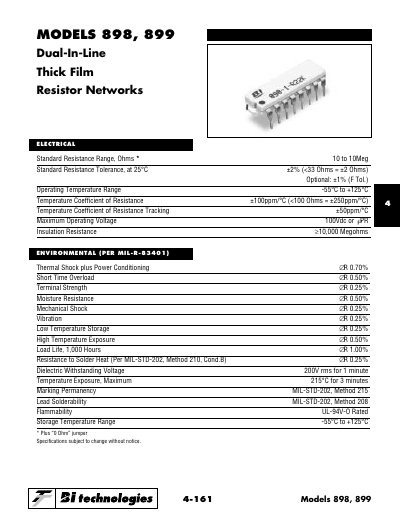

Provides specifications for 898 and 899 dual-in-line thick film resistor networks.
This document provides technical specifications for the TT Electronics Models 898 and 899 Dual-In-Line Thick Film Resistor Networks. It covers standard resistance ranges from 10 Ohms to 10 Megohms with tolerances of ±2% or optional ±1%, and an operating temperature range of -55°C to +125°C.
The datasheet details environmental performance based on MIL-R-83401 standards, including thermal shock, moisture resistance, and solderability. It also provides mechanical outline dimensions for both models (Model 898 with 16 leads and Model 899 with 14 leads) and explains circuit configurations such as isolated resistors, bussed resistors, and dual terminators.
| Standard Resistance Range | 10 Ohms to 10 Megohms |
|---|---|
| Standard Resistance Tolerance | ±2% (Optional: ±1%) |
| Operating Temperature Range | -55°C to +125°C |
| Temperature Coefficient of Resistance | ±100ppm/°C (<100 Ohms = ±250ppm/°C) |
| Maximum Operating Voltage | 100Vdc or √PR |
| Insulation Resistance | ≥10,000 Megohms |
| Dielectric Withstanding Voltage | 200V rms for 1 minute |
| Lead Material | Copper Alloy, 60/40 Tin-Lead (Plating) |
| Substrate Material | Alumina |
| Resistor Material | Cermet |
The operating temperature range is -55°C to +125°C.
Standard tolerance is ±2% at 25°C, with an optional ±1% (F Tol.) available.
Model 899 has 14 leads, while Model 898 has 16 leads.
