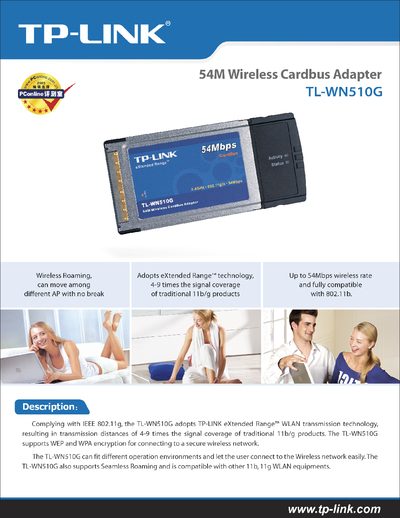

The TL-WN510G is a 54 Mbps wireless Cardbus adapter that uses TP‑Link's eXtended Range™ technology to increase signal coverage up to 4‑9 times that of traditional 11b/g devices. It supports IEEE 802.11b/g standards, WEP and WPA encryption, and offers seamless roaming across compatible access points.
This manual includes a quick‑setup guide, detailed specifications, supported operating systems (Windows 2000/XP/Vista), and information on installation, antenna type, transmit power, and environmental limits. It also lists related TP‑Link products and regulatory certifications.
| Wireless Signal Rates | 11g: 54/48/36/24/18/12/9/6 Mbps; 11b: 11/5.5/3/2/1 Mbps |
|---|---|
| Frequency Range | 2.4‑2.4835 GHz |
| Wireless Transmit Power | 17 dBm (MAX) |
| Antenna Type | Omni Directional, internal |
| Security | 64/128/152‑bit WEP, WPA/WPA2, WPA‑PSK/WPA2‑PSK (TKIP/AES) |
| Supported Operating Systems | Windows 2000/XP/Vista |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions | 4.5 × 2.1 × 0.2 in. (115 × 54 × 5 mm) |
It complies with IEEE 802.11g and IEEE 802.11b standards.
Windows 2000, Windows XP, and Windows Vista are supported.
Indoors up to 200 m and outdoors up to 830 m.
