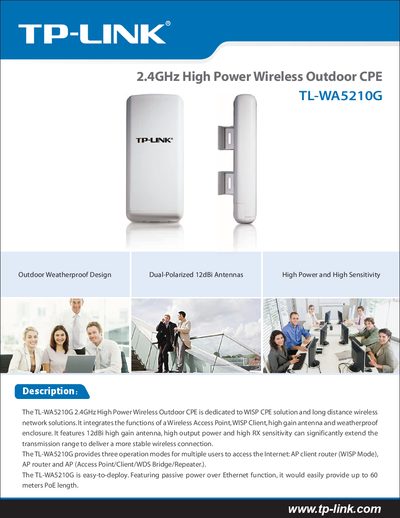

The TL-WA5210G 2.4GHz High Power Wireless Outdoor CPE is dedicated to WISP CPE solution and long distance wireless network solutions. It integrates the functions of a Wireless Access Point, WISP Client, high gain antenna and weatherproof enclosure. It features 12dBi high gain antenna, high output power and high RX sensitivity can significantly extend the transmission range to deliver a more stable wireless connection. The TL-WA5210G provides three operation modes for multiple users to access the Internet: AP client router (WISP Mode), AP router and AP (Access Point/Client/WDS Bridge/Repeater.). The TL-WA5210G is easy-to-deploy. Featuring passive power over Ethernet function, it would easily provide up to 60 meters PoE length.
The TL-WA5210G is a 2.4 GHz high‑power wireless outdoor CPE designed for WISP solutions and long‑distance wireless networks. It integrates a wireless access point, WISP client, high‑gain 12 dBi dual‑polarized antenna, and a weatherproof enclosure.
This manual covers the three operation modes (AP client router, AP router, and AP), passive Power over Ethernet deployment, detailed technical specifications, installation steps, and accessories needed for a successful deployment.
| Frequency Range | 2.4-2.4835 GHz |
|---|---|
| Transmit Power | Up to 27 dBm |
| Antenna Gain | 12 dBi Dual‑Polarized Aluminum |
| Power Supply | 12 VDC / 1 A Switching PSU |
| Operating Temperature | -30 °C to 70 °C |
| Dimensions | 10.4 × 4.7 × 3.2 in (265 × 120 × 83 mm) |
| PoE Length | Up to 60 m |
It supports AP client router (WISP Mode), AP router, and AP (Access Point/Client/WDS Bridge/Repeater).
Yes, it supports passive PoE and can be powered over Ethernet cables up to 60 meters long.
The device includes a 12 dBi dual‑polarized aluminum antenna.
The unit operates from –30 °C to 70 °C and 10 % to 90 % relative humidity (non‑condensing).
