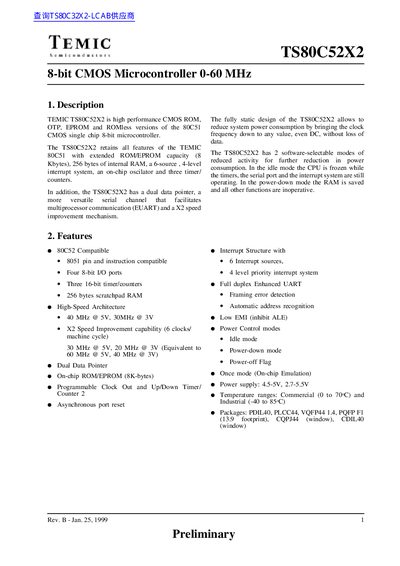

TS80C52X2 is high performance CMOS ROM, OTP, EPROM and ROMless versions of the 80C51 CMOS single chip 8-bit microcontroller.
The TS80C52X2 is an 8‑bit CMOS microcontroller compatible with the 80C52 core, offering up to 8 KB of on‑chip ROM/EPROM, 256 bytes of RAM, a dual data pointer, and a versatile serial channel for multiprocessor communication. It includes a 6‑source, 4‑level interrupt system, three 16‑bit timer/counters, and a full‑duplex enhanced UART.
The device operates from 2.7 V to 5.5 V, supports both standard and X2 speed modes (up to 40 MHz equivalent), and is available in multiple packages such as PDILAO, PLCC44, VQFP44, PQFP, CQPJ44, and CDILA0. Temperature ranges cover commercial (0 °C to 70 °C) and industrial (‑40 °C to 85 °C) environments.
| CPU clock speed (standard mode) | 40 MHz @ 5 V, 30 MHz @ 3 V |
|---|---|
| CPU clock speed (X2 mode) | 60 MHz @ 5 V, 40 MHz @ 3 V (equivalent) |
| On‑chip ROM/EPROM | 8 KB |
| Internal RAM | 256 bytes |
| Power supply voltage | 4.5‑5 V, 2.7‑5.5 V |
| Temperature range | Commercial 0 °C to 70 °C, Industrial ‑40 °C to 85 °C |
| Interrupt sources | 6 sources, 4‑level priority |
| Timer/counters | Three 16‑bit timer/counters |
| UART | Full‑duplex Enhanced UART with framing error detection and automatic address recognition |
| Package types | PDILAO, PLCC44, VQFP44 1.4, PQFP, CQPJ44, CDILA0 |
The TS80C52X2 runs up to 40 MHz at 5 V (or 30 MHz at 3 V) in standard mode.
It is offered in PDILAO, PLCC44, VQFP44 1.4, PQFP, CQPJ44, and CDILA0 packages.
The microcontroller operates from 4.5 V to 5 V and also from 2.7 V to 5.5 V.
Commercial range is 0 °C to 70 °C; industrial range is ‑40 °C to 85 °C.
