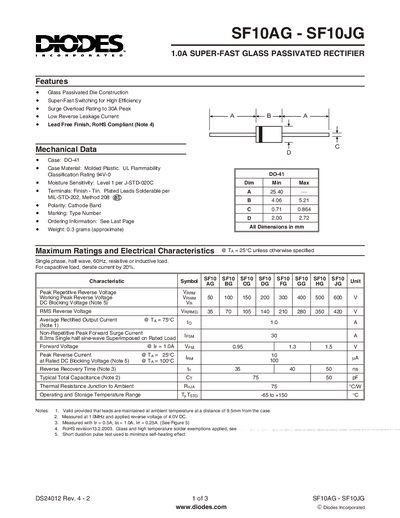

SF10AG - SF10JG 1.0A SUPER-FAST GLASS PASSIVATED RECTIFIER is a glass passivated encapsulated Schottky diode with super-fast switching, high efficiency, high surge overload rating, low reverse leakage current and other features.
The SF10AG‑SF10JG series are 1 A glass‑passivated rectifiers featuring super‑fast switching, low reverse leakage, and a surge overload rating up to 30 A peak. They are RoHS‑compliant with a lead‑free finish and are supplied in various DO‑41 and DO‑44 package options.
Key specifications include a peak repetitive reverse voltage of 50 V, working peak reverse voltage of 100 V, average rectified output current of 1 A, and a forward voltage of 0.95 V at 1 A. The devices operate from –65 °C to +150 °C and have a thermal resistance of 75 °C·W. Ordering information lists ammo‑pack, bulk, and tape‑and‑reel options for each part number.
| Non‑Repetitive Peak Forward Surge Current | 30 A |
|---|---|
| Thermal Resistance Junction‑to‑Ambient | 75 °C·W |
The devices are rated for a peak surge overload of 30 A.
Current should be derated by 20 % when the rectifier drives a capacitive load.
Yes, they have a lead‑free finish and are RoHS compliant.
