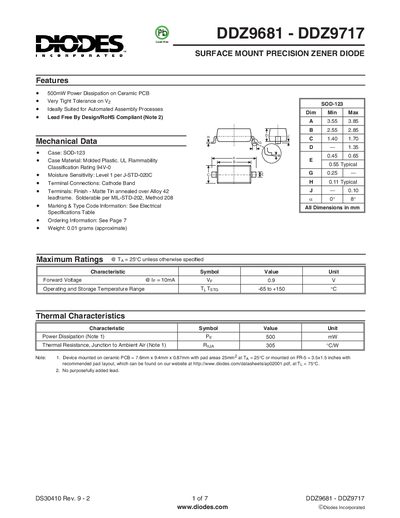

The document is an introduction to Pb Lead-free DS30410 Rev. 9 - 2 1 of 7 DDZ9681 - DDZ9717. The product features 500mW power dissipation, very tight tolerance on VZ, ideally suited for automated assembly processes, etc. Additionally, the product is lead-free by design and RoHS compliant.
The DDZ9681‑DDZ9717 series are surface‑mount precision Zener diodes in an SOD‑123 package, designed for automated assembly and RoHS compliance. Key features include 500 mW power dissipation, very tight voltage tolerance, and a moisture‑sensitivity level 1 rating.
The datasheet provides electrical characteristics such as a forward voltage of 0.9 V at 10 mA, operating temperature range from –65 °C to +150 °C, and thermal resistance of 305 °C/W. Ordering information, marking codes, and packaging details (tape & reel) are also included.
| Power Dissipation | 500 mW |
|---|---|
| Forward Voltage (10 mA) | 0.9 V |
| Operating Temperature Range | -65 °C to +150 °C |
| Thermal Resistance (J‑A) | 305 °C/W |
| Package Type | SOD‑123 |
| Weight | 0.01 g (approx.) |
| Moisture Sensitivity Level | Level 1 (J‑STD‑020C) |
The diodes are rated for 500 mW power dissipation.
They are supplied in an SOD‑123 surface‑mount package.
The diodes have a moisture‑sensitivity level 1 according to J‑STD‑020C.
They can operate from –65 °C up to +150 °C.
