The SD107WS surface mount Schottky barrier diode has a low forward voltage drop, transient protection guard ring die construction, ideal for low logic level applications and low capacitance.
The SD107WS is a surface‑mount Schottky barrier diode offered in an SOD‑323 package. It features a low forward voltage drop, guard‑ring die construction for transient protection, and low capacitance, making it suitable for low‑logic level applications.

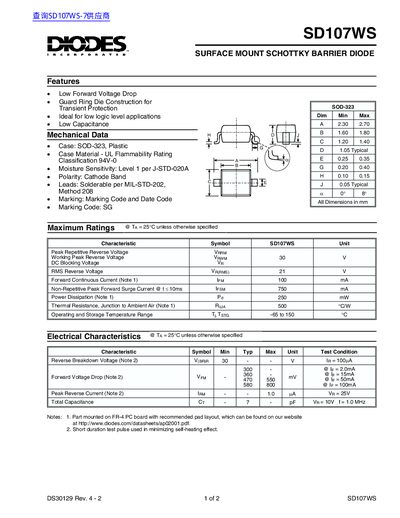

The datasheet lists electrical characteristics such as a 30 V peak reverse voltage, 100 mA forward continuous current, and 250 mW power dissipation, as well as mechanical dimensions and ordering information. Additional details and recommended PCB pad layouts are available on Diodes’ website.
| Peak Repetitive Reverse Voltage | 30 V |
|---|---|
| Forward Continuous Current | 100 mA |
| Power Dissipation | 250 mW |
| Thermal Resistance, Junction‑to‑Ambient | 500 °C/W |
| Operating Temperature Range | -65 to 150 °C |
The SD107WS is supplied in an SOD‑323 surface‑mount package.
The diode can withstand a peak reverse voltage of 30 V.
