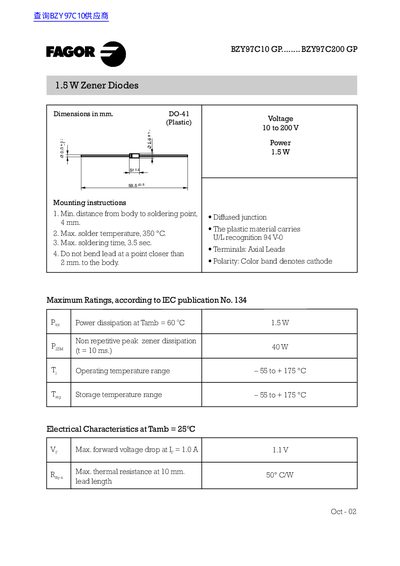

BZY97C10 GP.. BZY97C200 GP 1.5 W Zener Diodes are 1.5W Zener diodes with a working voltage range of 10-200V. The package type is DO-41 (Plastic) and the rated current is 10 mA. The maximum power is 40 W and the operating temperature range is -55 to +175 °C. The storage temperature range is -55 to +175 °C.
The FAGOR BZY97C series comprises axial‑lead Zener diodes in a DO‑41 plastic package. The datasheet lists voltage ranges from 10 V to 200 V and a maximum power dissipation of 15 W, along with detailed mounting guidelines.
Key specifications include operating and storage temperature limits of –55 °C to +175 °C, thermal resistance values, and forward voltage drop at 1 A. Characteristic curves and breakdown data for each voltage grade are provided to aid selection and design.
| Voltage range | 10 to 200 V |
|---|---|
| Power dissipation | 15 W |
| Operating temperature range | -55 °C to +175 °C |
| Storage temperature range | -55 °C to +175 °C |
The minimum distance is 4 mm.
The maximum soldering temperature is 350 °C.
The maximum soldering time is 3.5 seconds.
Polarity is indicated by a color band denoting the cathode.
