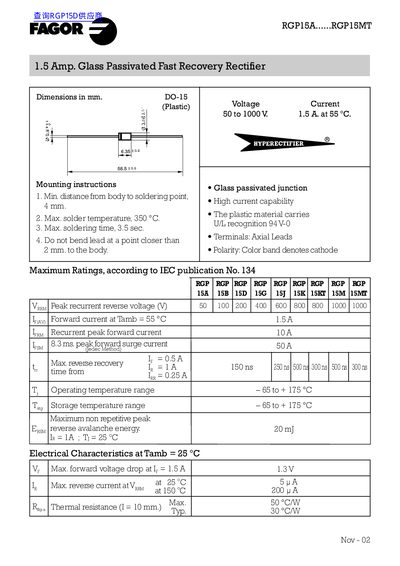

This document provides the mounting instructions, maximum ratings, and electrical characteristics of RGP 15A 50 RGP15A..RGP15MT 1.5 Amp. Glass Passivated Fast Recovery Rectifier.
This document is a technical datasheet for the Hyperectifier RGP15A, a glass passivated fast recovery rectifier with axial leads. It specifies that the device operates at voltages from 50 to 1000 V and carries a forward current of 1.5 A at 55 °C.
| Forward current (Tamb = 55 °C) | 1.5 A |
|---|---|
| Voltage range | 50 to 1000 V |
| Package type | DO-15 (Plastic) |
| Max. solder temperature | 350 °C |
| Max. reverse recovery time (RGP15A) | 150 ns |
| Operating temperature range | -65 to + 175 °C |
The maximum soldering time is 3.5 seconds.
Polarity is indicated by a color band that denotes the cathode.
