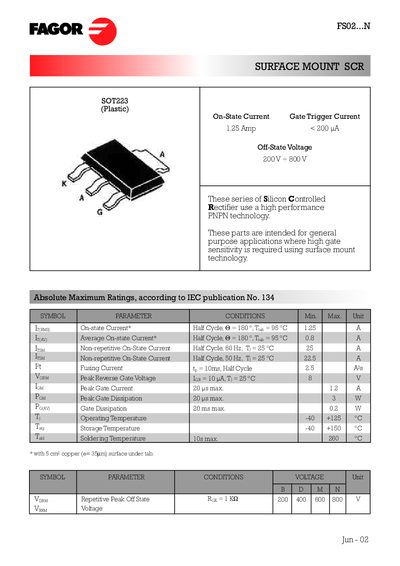

The FS02.N SURFACE MOUNT SCR is a silicon controlled rectifier produced by Fagor. It has high-performance PNPN technology and is suitable for general-purpose applications that require high gate sensitivity using surface mount technology.
This document provides technical specifications and electrical characteristics for the Fagor FS02...N series of silicon controlled rectifiers. The device utilizes PNPN technology and is designed as a surface-mount component with an SOT223 plastic case.
Key performance parameters include an on-state current of 1.25 Amp, a peak reverse gate voltage capability up to 800V depending on the suffix (B, D, M, or N), and operating temperatures ranging from -40°C to +125°C.
| On-State Current (Half Cycle) | 1.25 A |
|---|---|
| Gate Trigger Current | < 200 pA |
| Off-State Voltage (Max) | 800 V |
| Operating Temperature Range | -40 +125 °C |
| Package Type | SOT223 (Plastic) |
The maximum operating temperature is +125 °C.
The device uses an SOT223 plastic surface mount package.
The half-cycle on-state current is rated at 1.25 Amps.
