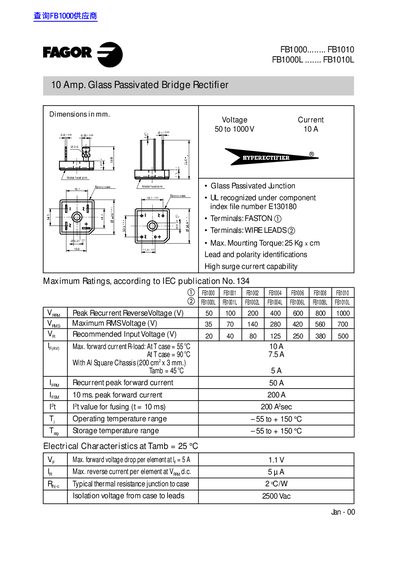

FB1000-FB1010 10 Amp. Glass Passivated Bridge Rectifier, rated voltage 50~1000V, rated current 10A. Features include: Glass Passivated Junction, UL recognized, terminals are FASTON and WIRE LEADS, with lead and polarity identifications, high surge current capability.
This datasheet details the electrical and thermal characteristics of Fagor's FB1000 to FB1010 bridge rectifiers. These devices are rated for 50 to 1000 V and 10 A, with glass passivated junctions and UL recognition. Key specs include operating temperature ranges from -55°C to +150°C and thermal resistance of 2°C/W. The document also includes characteristic curves for forward voltage and surge current performance.
| Voltage Range | 50 to 1000 V |
|---|---|
| Current | 10A |
| Max. Forward Current at 55°C | 10A |
| Max. Forward Current at 90°C | 75A |
| Operating Temperature Range | -55 to +150°C |
| Thermal Resistance | 2°C/W |
| Isolation Voltage | 2500 Vac |
10A.
From -55°C to +150°C.
2°C/W.
